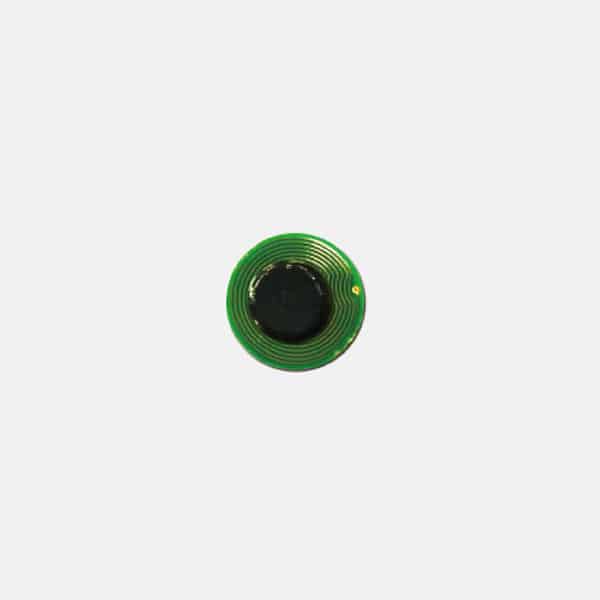

PCB Tag
PCB Tag features its flexibility and availability in different sizes. In its preliminary format, PCB Tag can fit into items by insert molding process. For 6.75mm type, it ideally goes to small containers and makes them to be identified in a contactless way. It helps realize asset management for small item and tool with small space for tagging.
Play Video
Specifications
| Dimensions (mm) | D 6.75 x T 0.9 | D 7.5 x T 0.9 |
| Material | PCB | |
| Frequency | HF | HF |
| Operating Temperature(°C) | -25 to 55 | -25 to 55 |
| Storage Temperature(°C) | -25 to 85 | -25 to 85 |
| IP Rating | IP65 | IP65 |
| Applicable Surface | Non-metal | Non-metal |
| RFID Chip | NXP ICODE SLIX | NXP ICODE SLIX NXP ICODE SLIX-S NXP ICODE SLIX-L Fujitsu MB89R118 |
| NFC Standard | Type 5 | Type 5 |
| RF Interface Protocol | ISO/IEC 15693 | ISO/IEC 15693 |
| Options | Adhesive | Adhesive |
