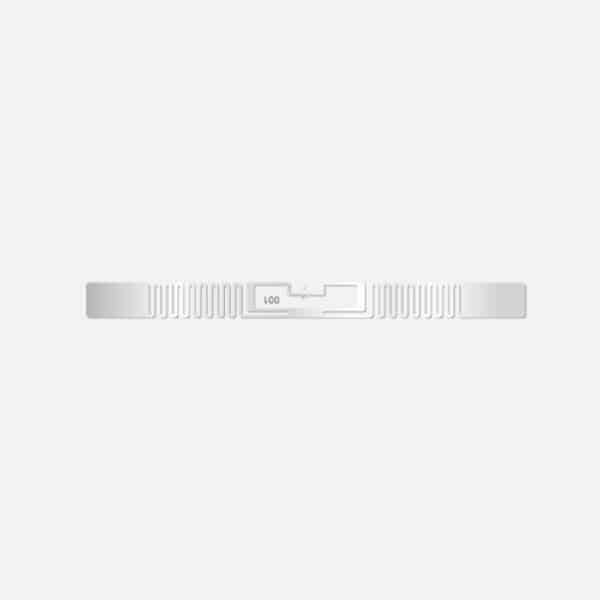

10 x 80 UHF Smart Label
SAG RAIN RFID inlay has superior performance for application which requires long reading range such as access control, logistic, and asset management. Our dry inlay comes in different antenna size for selection.
Play Video
Specifications
| Die Cut Size | 10 x 80 |
| Antenna Size | 6 x 76 |
| Material | synthetic paper / art paper/ PET |
| Frequency | UHF |
| Operating Temperature (°C) | -25 to 70 |
| Storage Temperature (°C) | -25 to 70 |
| Applicable Surface | Non-metal |
| RFID Chip | NXP UCODE G2iL NXP UCODE G2iM |
| RF Interface Protocol | ISO/IEC18000-6C /EPC Gen2V2 |
| Options | preprinted artwork, thermal transfer for QR code/ Barcode/ UID printing |
