19.05 x 44.45 UHF Smart Label

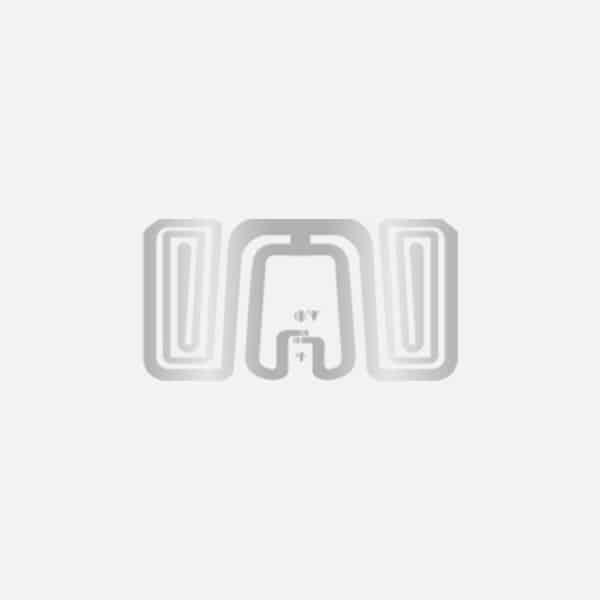

SAG RAIN RFID inlay has superior performance for application which requires long reading range such as access control, logistic, and asset management. Our dry inlay comes in different antenna size for selection.
Application: Features:
Play Video

Specifications

Die Cut Size 19.05 x 44.45
Antenna Size 15 x 40
Material synthetic paper / art paper/ PET
Frequency UHF
Operating Temperature (°C)-25 to 70
Storage Temperature (°C)-25 to 70
Applicable SurfaceNon-metal
RFID Chip NXP UCODE 8
RF Interface ProtocolISO/IEC18000-6C /EPC Gen2V2
Optionspreprinted artwork, thermal transfer for QR code/ Barcode/ UID printing
