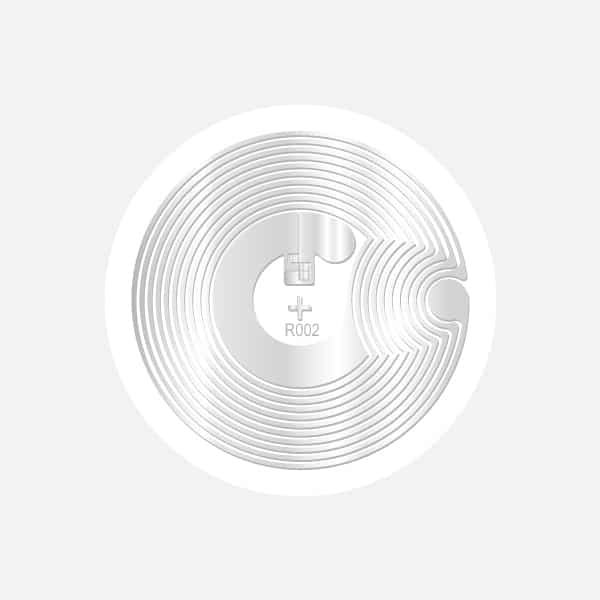

D29 HF Smart Label
Smart Label comprises of antenna and chip within top surface layer and bottom adhesive. Due to its simple structure, NFC label has a great flexibility in size and gives cost competitiveness compared to hard tag products. Meanwhile, artwork printing can be applied to the top paper to make your label with a style. NFC Label acts as a quick product solution to enable an item with NFC function. 。Applications Customer Engagement / Item-level Tracking / Product Authentication 。Features A quick product solution to enable NFC applications
Play Video
Specifications
| Die Cut Size | 29phi |
| Antenna Size | 25phi |
| Material | synthetic paper / art paper/ PET |
| Frequency | HF |
| Operating Temperature (°C) | -25 to 70 |
| Storage Temperature (°C) | -25 to 70 |
| Applicable Surface | Non-metal |
| RFID Chip | NXP MIFARE DESFire EV1 NXP MIFARE Ultralight EV1 NXP MIFARE Ultralight C NXP NTAG213/215/216 NXP ICODE SLIX/SLIX2 NXP NTAG424 DNA Sony Felica RC-S966 ST25TV512/02K ST25TA02K |
| NFC Standard | Type 2 / Type 3 / Type 4 / Type 5 |
| RF Interface Protocol | ISO/IEC 14443A, ISO/IEC 15693 |
| Options | preprinted artwork, thermal transfer for QR code/ Barcode/ UID printing |
