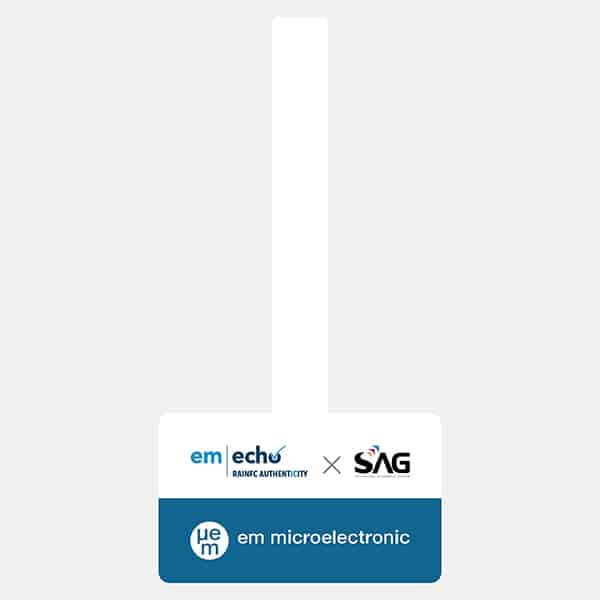

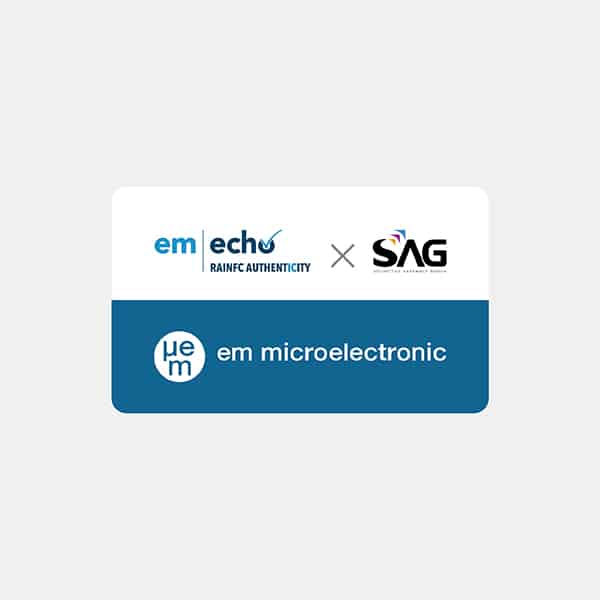

Dual Frequency RFID Label
This special label can operate on both NFC and RAIN RFID (UHF) technologies. Powered by em|echo V chip (EM4425), it provides an application crossover and opens the possibility to apply just one label to fit all use cases in two domains. Features Dual frequency in one chip Shared memory Applications Invent ory and Supply Chain Management Customer Engagement Logistics
Play Video
Specifications
| Die Cut Size | W30 x L50 | W100 x L50 |
| Antenna Size | W26 x L46 | W26 x L46 |
| Material | synthetic paper / art paper/ PET | synthetic paper / art paper/ PET |
| Frequency | Dual (HF + UHF) | Dual (HF + UHF) |
| Operating Temperature (°C) | -25 to 70 | -25 to 70 |
| Storage Temperature (°C) | -25 to 70 | -25 to 70 |
| Applicable Surface | Non-metal | Non-metal |
| RFID Chip | EM4425 | EM4425 |
| NFC Standard | Type 5 | Type 5 |
| RF Interface Protocol | ISO/IEC 15693 ISO 18000-6C /EPC Gen2V2 | ISO/IEC 15693 ISO 18000-6C /EPC Gen2V2 |
| Options | preprinted artwork, thermal transfer for QR code/ Barcode/ UID printing | preprinted artwork, thermal transfer for QR code/ Barcode/ UID printing |
