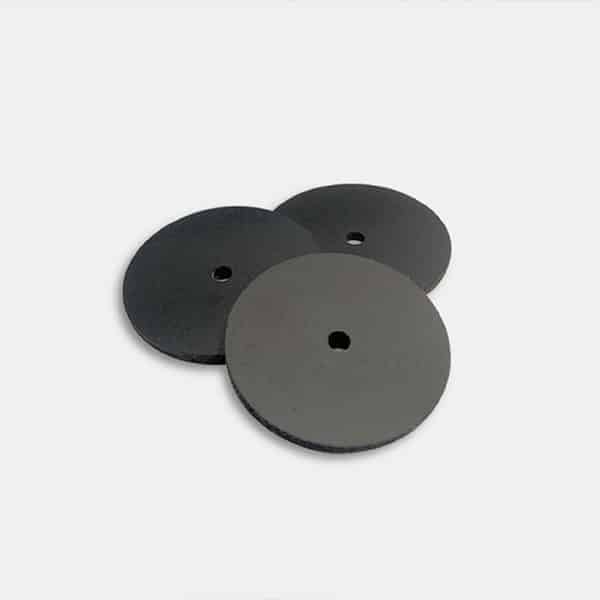

GF Stick Tag
GF Stick Tag is a quick RFID Tag solution to be applied onto a non-metal item for identification, asset management or tracking purpose. Made of glassfiber, this Tag is robust to withstand harsh conditions. This form factor also can be profiled into the shape and size to fit the tagged item.
Play Video
Specifications
| Dimensions (mm) | OD 20 x ID 3 xT 1.6 | OD 30 x ID 3.2 x T 1.6 | OD 50 x ID 3 x T 1.6 | OD 50 x ID 4.3 x T 1.6 |
| Material | GF | GF | GF | GF |
| Frequency | LF | LF/ HF | HF | LF |
| Operating Temperature(°C) | -25 to 85 | -25 to 85 | -25 to 85 | -25 to 85 |
| Storage Temperature(°C) | -25 to 120 | -25 to 120 | -25 to 120 | -25 to 120 |
| IP Rating | IP67 | IP67 | IP67 | IP67 |
| Applicable Surface | Non-metal | Non-metal | Non-metal | Non-metal |
| RFID Chip | EM4200 | MICROCHIP ATA5577 NXP HITAG 2 NXP HITAG S2048/S256 EM4102 EM4200 Infineon SRF55V10P Fujitsu MB89R118/119/112 | NXP ICODE SLIX | NXP HITAG 1 EM4102 EM4200 |
| NFC Standard | n/a | n/a | Type 5 | n/a |
| RF Interface Protocol | ISO/IEC 15693 | |||
| Color | Black | Black | Black | Black |
| Options | Pad Engraving Laser Engraving Adhesive | Pad Engraving Laser Engraving Adhesive | Pad Engraving Laser Engraving Adhesive | Pad Engraving Laser Engraving Adhesive |
