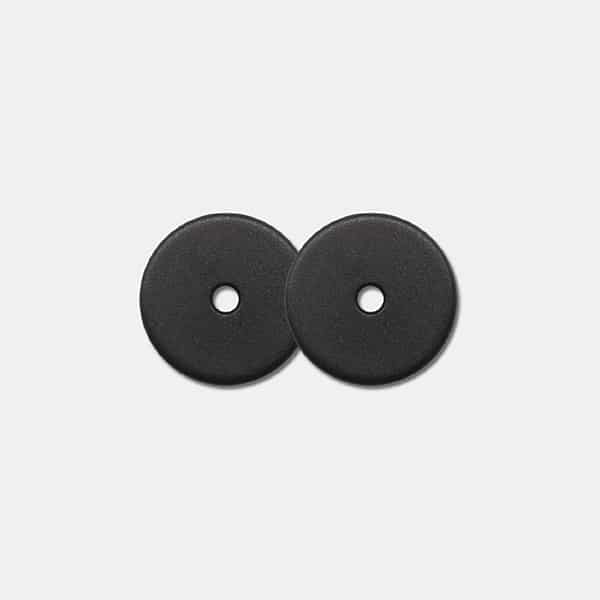

Overmolded Stick Tag
Overmolded Stick Tag has a slim but robust housing (IP68 rated) for industrial applications. The tag can be mounted to non-metal items by using adhesive or screw in the 5mm central hole.
Play Video
Specifications
| Dimensions (mm) | OD 22 x ID 3.1 x T 3.1 | OD 30 x ID 5.2 x T 3 | OD 30 x ID 5.2 x T 2.5 | OD 50 x ID 5.2 x T 3 |
| Material | Nylon | Nylon | Nylon | Nylon |
| Frequency | HF | HF/ UHF | LF/ HF | LF/ HF |
| Operating Temperature(°C) | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
| Storage Temperature(°C) | -40 to 120 | -40 to 120 | -40 to 120 | -40 to 120 |
| IP Rating | IP68 | IP68 | IP68 | IP68 |
| Applicable Surface | Non-metal | Non-metal | Non-metal | Non-metal |
| RFID Chip | Tag-it HF-I Plus | NXP ICODE SLIX | MICROCHIP ATA5577 Fujitsu MB89R118 | MICROCHIP ATA5577 NXP ICODE SLIX EM4200 Fujitsu MB89R118 |
| NFC Standard | n/a | Type 5 | n/a | Type 5 |
| RF Interface Protocol | n/a | ISO/IEC 15693 | ISO/IEC 15693 | ISO/IEC 15693 |
| Color | Black | Black | Black | Black |
| Options | Inkjet Engraving Laser Engraving Adhesive | Inkjet Engraving Laser Engraving Adhesive | Inkjet Engraving Laser Engraving Adhesive | Laser Engraving Adhesive |
