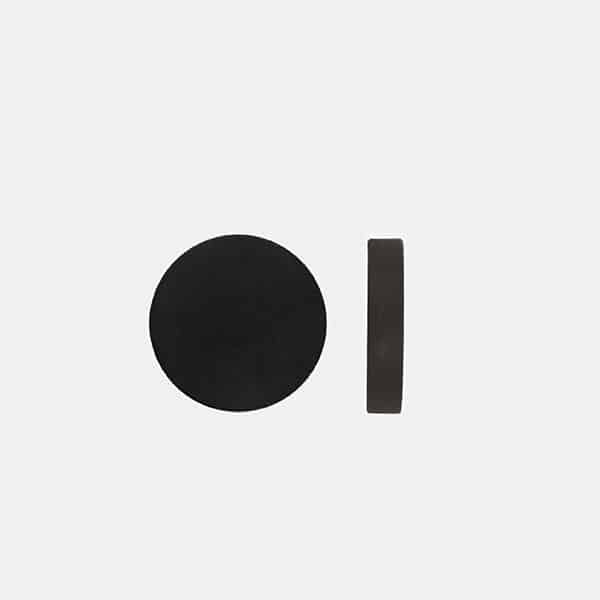

Button Tag
Button tag is built with industrial-graded plastic by overmolding process to make it robust. This tag can be applied with a tape or resin molded to an item. It can go to small items or fit into small space for item tracking or product identification purposes.
Application: NFC, Consumer Electronics, Healthcare
Features: Embeddable, On-metal Reading
Play Video
Specifications
Dimensions (mm) | D10 x T1.8 | D12.4 x T 2 | D 14.5 x T 3 | D 16 x T 1.3 | D 16 x T 3 | D 20 x T 2.5 | D 22 x T 3 | D 30x T 2 |
Material | Nylon | Nylon | Nylon | Nylon | Nylon | Nylon | PPS | Nylon |
Frequency | HF | LF/HF | HF | HF | HF | HF | HF | HF |
Operating Temperature(°C) | -40 to 85 | -40 to 85 | -40 to 85 | -25 to 80 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
Storage Temperature(°C) | -40 to 90 | -40 to 90 | -40 to 90 | -25 to 80 | -40 to 90 | -40 to 90 | -40 to 120 | -40 to 120 |
IP Rating | IP68 | IP68 | IP68 | IP68 | IP68 | IP69K | IP68 | IP68 |
Applicable Surface | Non-metal | Non-metal | Non-metal | Non-metal | Non-metal | Non-metal | Non-metal | Non-metal |
RFID Chip | NXP ICODE SLIX NXP ICODE SLIX-L NXP ICODE SLIX-S ST25TV512 Fujitsu MB89R118 | NXP ICODE SLIX ST25TV512 EM4200 | NXP ICODE SLIX ST25TV512 | NXP ICODE SLIX | Fujitsu MB89R118 | NXP MIFARE Classic EV1 Fujitsu MB89R118 | NXP ICODE SLIX NXP NTAG213 ST25TV512 TI Tag-it HF-I Plus | NXP ICODE SLIX |
NFC Standard | Type 5 | Type 5 | Type 5 | Type 5 | n/a | n/a | Type 2 / Type 5 | Type 5 |
RF Interface Protocol | ISO/IEC 15693 | ISO/IEC 15693 | ISO/IEC 15693 | ISO/IEC 15693 | ISO/IEC 15693 | ISO/IEC 15693 ISO/IEC 14443A | ISO/IEC 15693 ISO/IEC 14443A | ISO/IEC 15693 |
Color | Black | Black | Black | Black | Black | Black | Black | Black |
Options | Inkjet Engraving Laser Engraving Adhesive | Inkjet Engraving Laser Engraving Adhesive | Inkjet Engraving Laser Engraving Adhesive | Inkjet Engraving Laser Engraving Adhesive | Inkjet Engraving Laser Engraving Adhesive | Inkjet Engraving Laser Engraving Adhesive | Inkjet Engraving Laser Engraving Adhesive | Inkjet Engraving Laser Engraving Adhesive |
