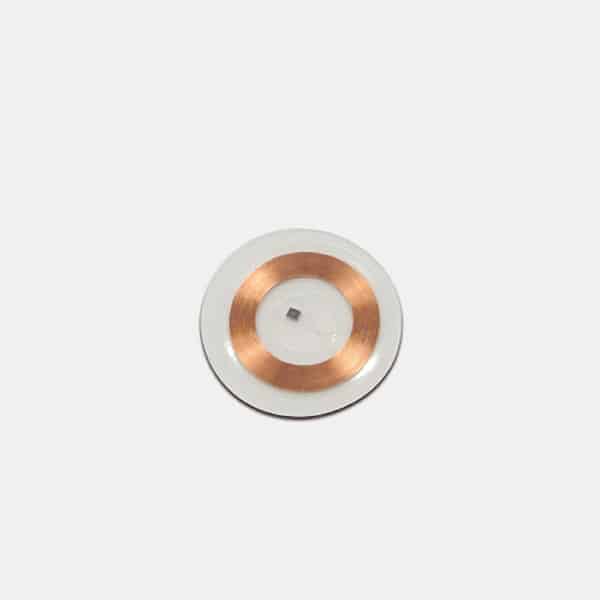

Clear Disc Tag
Clear Disc Tag is designed for use on non-metal surface and often used for general tagging pourposes such as product identification, asset management, and item tracking. Clear Disc Tag is a cost-effective RFID Tag due to its simple form factor and it can be made in different sizes. *Clear Disc Patch Tag is Clear Disc Tag with a sticker (adhesive backing) so that it can be attached to an item in a quick and easy way.
Application: NFC, Security
Features: FRAM (gamma-ray radiation tolerance)
Play Video
Specifications

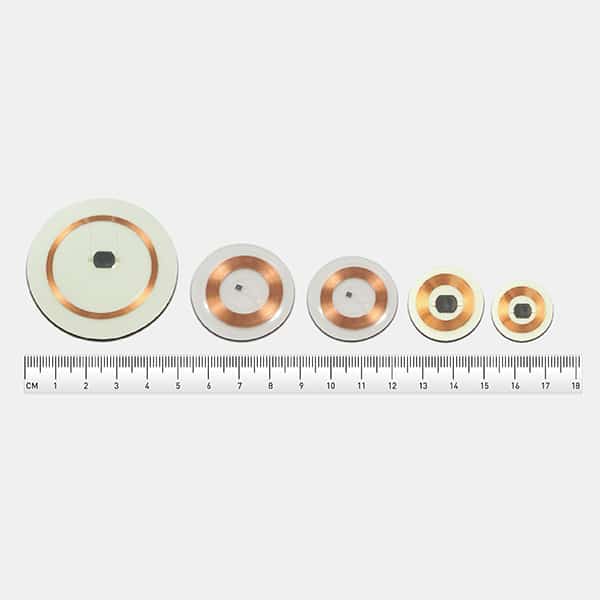

Dimensions (mm) | D 20 x T 1.1 | D 25 x T 1.1 | D 30 x T 1.1 | D 35 x T 1.1 | D 50 x T 1.1 |
Material | PVC | PVC | PVC | PVC | PVC |
Frequency | LF/ HF | LF/ HF | LF/ HF | LF/ HF | LF/ HF |
Operating Temperature(°C) | -15 to 55 | -15 to 55 | -15 to 55 | -15 to 55 | -15 to 55 |
Storage Temperature(°C) | -15 to 55 | -15 to 55 | -15 to 55 | -15 to 55 | -15 to 55 |
IP Rating | IP68 | IP68 | IP68 | IP68 | IP68 |
Applicable Surface | Non-metal | Non-metal | Non-metal | Non-metal | Non-metal |
RFID Chip | MICROCHIP ATA5577 NXP MIFARE Classic EV1 NXP MIFARE DESFire EV1 NXP NTAG213 EM4102 EM4200 Fujitsu MB89R118 TI Tag-it HF-I Plus | MICROCHIP ATA5577 NXP MIFARE Classic EV1 NXP MIFARE DESFire EV1 NXP ICODE SLIX NXP HITAG 1/HITAG 2 NXP HITAG S EM4102 EM4200 LEGIC MIM256/MIM1024 Fujitsu MB89R118 | MICROCHIP ATA5577 NXP MIFARE DESFire EV1 NXP ICODE SLIX NXP HITAG 1/HITAG 2 NXP HITAG S EM4102 EM4200 EM4450 LEGIC MIM256 Infineon SRF55V10P | MICROCHIP ATA5577 NXP MIFARE Classic EV1 EM4102 | NXP ICODE SLIX EM4102 EM4200 LEGIC MIM1024 Fujitsu MB89R118 |
NFC Standard | Type 2 / Type 4 | Type 2 / Type 4 / Type 5 | Type 4 / Type 5 | n/a | Type 5 |
RF Interface Protocol | ISO/IEC 15693 ISO/IEC 14443A | ISO/IEC 15693 ISO/IEC 14443A | ISO/IEC 15693 ISO/IEC 14443A | ISO/IEC 14443A | ISO/IEC 15693 |
Color | White | White | White | White | White |
Options | Colorful Printing/ Inkjet Printing/ Laser Engraving | Colorful Printing/ Inkjet Printing/ Laser Engraving | Colorful Printing/ Inkjet Printing/ Laser Engraving | Colorful Printing/ Inkjet Printing/ Laser Engraving | Colorful Printing/ Inkjet Printing/ Laser Engraving |
