NFC Ferrite Tag 0402

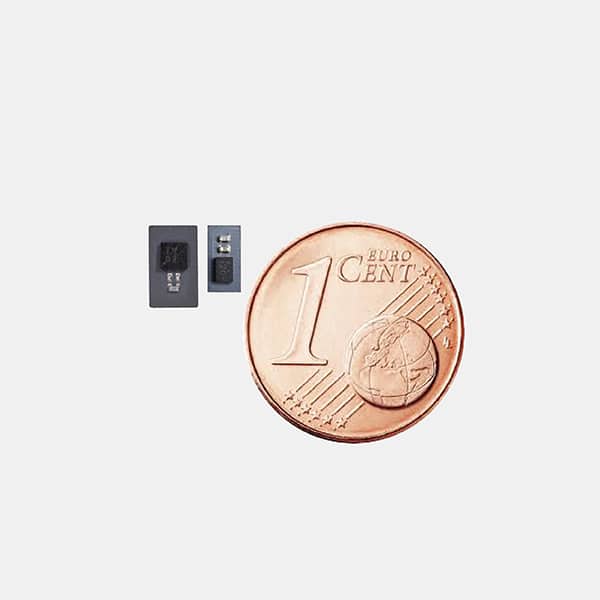

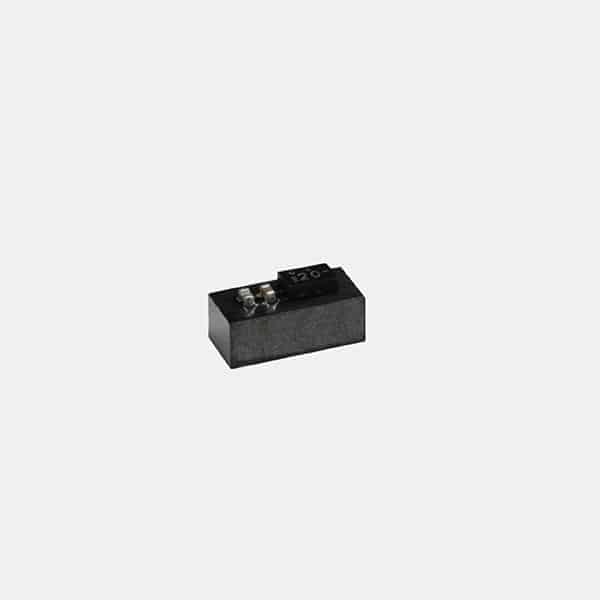

0402 (Size4x2mm) Ferrite Tag features its small and compact size.It can be embedded to instantly empower an item with NFC function. Meanwhile, Ferrite Tag has superior heat tolerance up to 200 degrees in Celsius to survive extreme use condition.
Application: NFC, Consumer Electronics, Healthcare
Features: Embeddable, Harsh Environment Resistant, High Temperature Resistant, On-metal Reading
Play Video
Specifications
Dimensions (mm) | L4.0 x W2.0 x T2.0 |
Material | Ferrite |
Frequency | HF |
Operating Temperature(°C) | -40 to 85 |
Storage Temperature(°C) | -60 to 200 |
Applicable Surface | On-metal Non-Metal |
RFID Chip | NXP ICODE SLIX ST25TV02K |
NFC Standard | Type 5 |
RF Interface Protocol | ISO/IEC 15693 |
