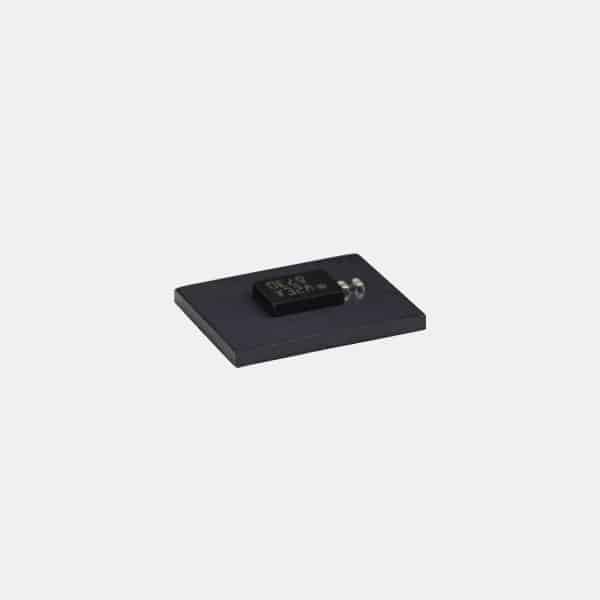

0806 Dynamic Tag Module

0806 Dynamic Tag Module packages both antenna and chip in one unit. The dual interface of both RFID (NDEF message support) and I2C can go with your sensor, consumer electronics, and energy harvesting device via SMT process. Via I2C, this tag helps connect devices for more advanced NFC applications.
Application: , , Features:
Play Video

Specifications

Dimensions (mm)L 8.0 x W 6.0 x T 1.35
MaterialFerrite
FrequencyHF
Operating Temperature(°C)-40 to 85
Storage Temperature(°C)-40 to 85
Applicable SurfaceNon-Metal
RFID ChipST25DV04K
NFC StandardType 5
RF Interface ProtocolISO/IEC 15693
