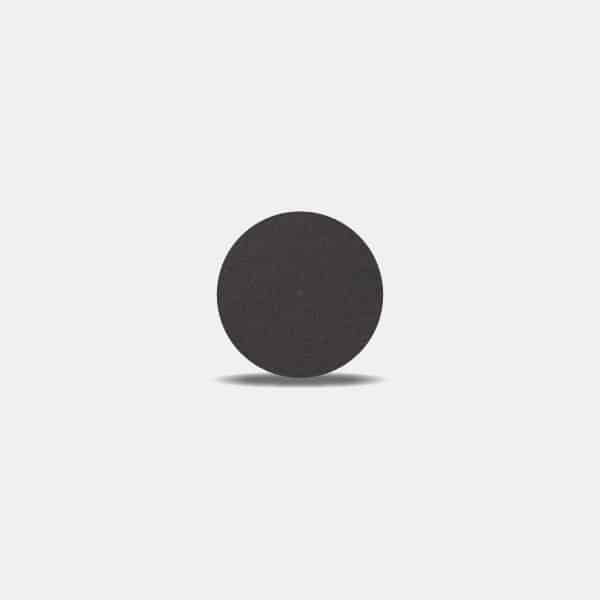

Molding Metal Tag
Molding Metal Tag is a hassle-free tag solution with both the antenna and chip in a small form factor which helps effortlessly add RFID function to electronic devices or small item with narrow space. More than that, the enhanced protection to the chip and antenna effectively guarantees its resistibility under harsh environment. Following ISO/IEC 15693 and NFC forum type 5 protocol, this tag enables a contactless communication between a device and NFC-enabled mobile phones via its RF interface.
Application: NFC, Healthcare, Retail / Branding
Features: Embeddable
Play Video
Specifications
Dimensions (mm) | D6 x T0.9 |
Material | PCB |
Frequency | HF |
Operating Temperature(°C) | -25 to 55 |
Storage Temperature(°C) | -25 to 85 |
IP Rating | IP67 |
Applicable Surface | On-metal |
RFID Chip | ST25TV02K |
NFC Standard | Type 5 |
RF Interface Protocol | ISO/IEC 15693 |
Options | Adhesive Laser engraving |
