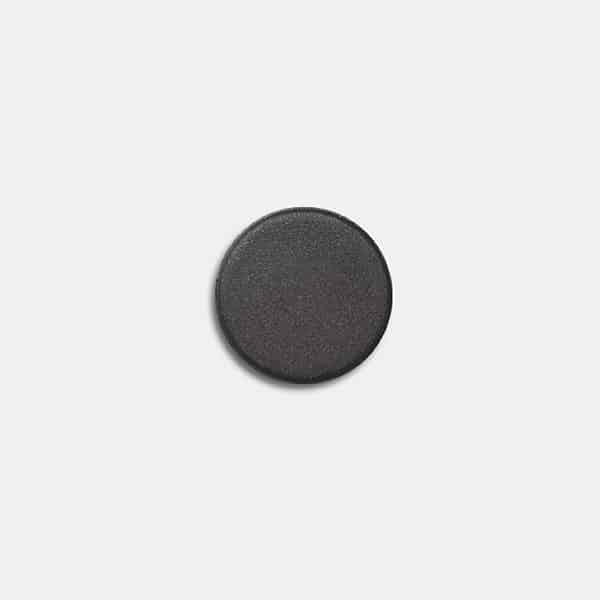

Overmolded Metal Tag
Overmolded Metal Tag is built with industrial-grade plastic to withstand harsh conditions. The tag can be mounted on items with metal surface by using adhesive. Also, its small form factor can fit into small space for item tracking or product identification purposes.
Play Video
Specifications
| Dimensions (mm) | D6 x T1.1 |
| Material | PCB |
| Frequency | HF |
| Operating Temperature(°C) | -25 to 55 |
| Storage Temperature(°C) | -25 to 85 |
| IP Rating | IP65 |
| Applicable Surface | On-metal |
| RFID Chip | NXP ICODE SLIX NXP ICODE SLIX-S |
| NFC Standard | Type 5 |
| RF Interface Protocol | ISO/IEC 15693 |
| Options | Adhesive |
