On-Metal Stick Tag

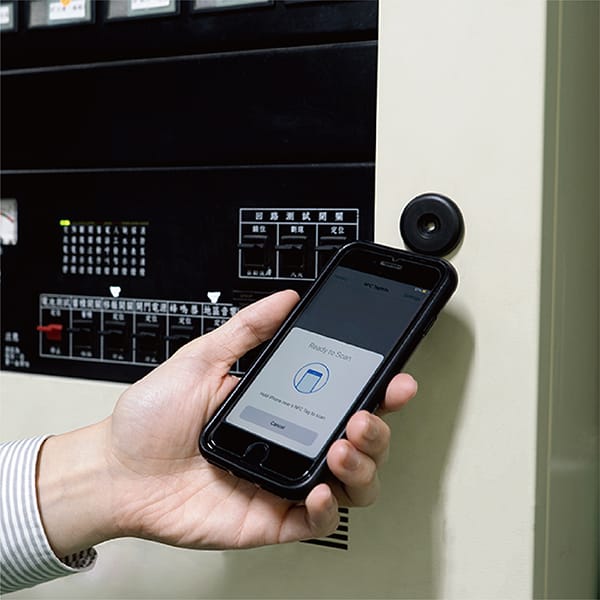

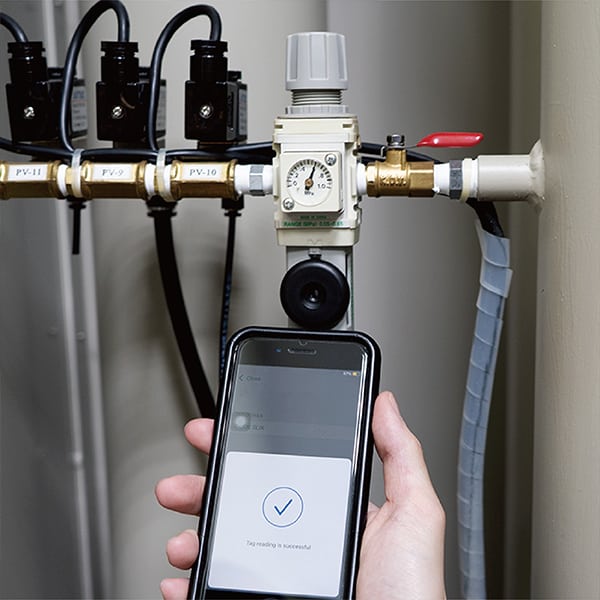

On Metal Stick Tag is built with industrial grade plastic to withstand harsh conditions. The tag can be mounted on items with metal surface by using adhesive or scre w in the 4.5mm central hole. The flat surface can be laser marked with logo or numbering to assist visual identification.
Play Video

Specifications

Dimensions (mm)OD 34 x ID 4.5 xT 6
MaterialNylon
FrequencyLF/ HF/
UHF(US/FCC)
UHF(EU/ETSI)
Operating Temperature(°C)-40 to 85
Storage Temperature(°C)-40 to 100
IP RatingIP68
Applicable SurfaceOn-metal
RFID ChipMICROCHIP ATA5577
NXP MIFARE Classic EV1
NXP NTAG213/216
NXP ICODE SLIX
EM4200
EM4450
Infineon SRF55V10P
NFC StandardType 2 / Type 5
RF Interface ProtocolISO/IEC 15693
ISO/IEC 14443A

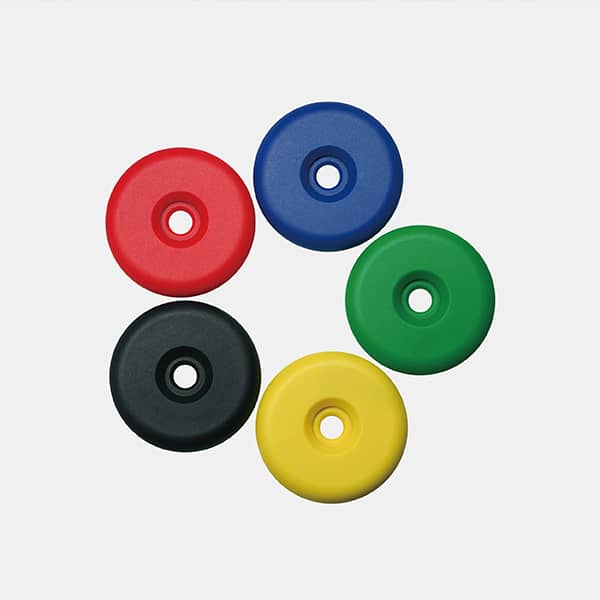

ColorBlack / Blue / Green / Red / Yellow
OptionsInkjet Engraving
Laser Engraving
Adhesive
