Molding Tag Has Excellent Low Temperature Resistibility
● Ultra-small size in 6.7(L) x 6.7(W) x 0.75(T)mm
● Robust to resist extreme temperature: -60°C for 4700hrs, +200°C for 240hrs, +250°C for 24hrs
● Packaged with chip and antenna in simple form factor
● ISO/IEC 15693, NFC Forum Type 5 compliant
● Product authentication and counterfeiting for consumer electronics
● Equipment setup and configuration
● Process management
● Medical device and surgical instruments identification
SAG is specialized and dedicated to developing NFC tags to accommodate applications with challenges such as space limit, high/low temperature and production process to integrate an NFC tag into a final product. Now, Molding Tag is created to tackle these and makes everyday items to be identified in a contactless way.
Tag to Identify on NFC-enabled Devices
Molding Tag is a hassle-free tag solution with both the antenna and chip in a small form factor which helps effortlessly add NFC function to electronic devices. Equipped with STMicroelectronics NFC Type 5-compliant ST25TV02K chip (following ISO/IEC 15693 protocol), this tag enables a contactless communication between a device and NFC-enabled mobile phones via its RF interface.
Ultra-small but Robust to Guarantee Reliable Performance
Molding Tag comes with a small and thin structure, making it ideally go to a narrow space or small item. More than that, the enhanced protection to the chip and antenna effectively guarantees its resistibility under harsh environment at 200 °C for 240hrs and an extreme 250°C for 24hrs condition with proven performance.
Customized Dimension for Versatile Application
SAG has the capability to profile this tag into the shape and size according to customer requirements. And you can apply this tag to non-metal items by using adhesive, epoxy potting or integrate it with the product via plastic injection. With the size flexibility and versatile tagging methods, Molding Tag extends NFC applications in every aspect.
SAG Launches VDA-Compliant RAIN RFID Hard Tag
SAG is now ISO16949-certified
Back in Dec. 2020, SAG obtained IATF16949:2016 Certificate. This certificate represents the requirements of a total quality management system for the design and manufacturing of parts and components specifically for the automotive industry. We see RFID plays a vital role and provides important values such as parts verification, data collection, and M2M communication in this domain.
RFID Transponders Enable Smart Logistics and Manufacturing
In automotive industry, suppliers from different tiers form a complicated supply chain. Thus, sophisticated technologies are introduced to streamline the whole process. When car parts carry an ID number, the RFID system helps increase the real time visibility for production, full traceability and automated identification for warehouses. On the other hand, it also improves flexibility and efficiency during the manufacturing process.

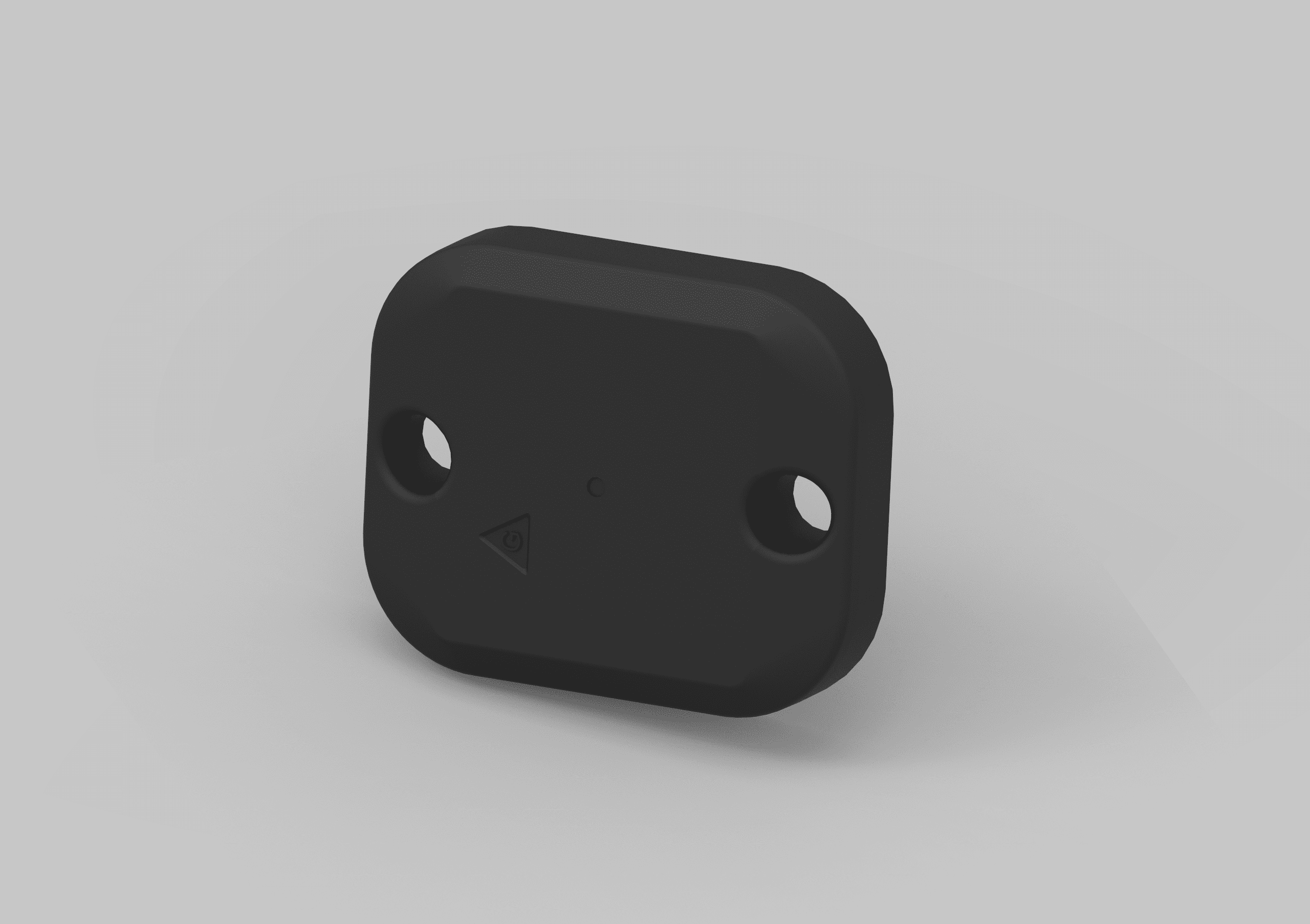

Knowing these demands, we come up with the new RAIN RFID Overmolded Square Metal Tag [size 53(L)x44(W)x11(T)mm and powered by Impinj Monza 4E technology] with increased EPC memory up to 496-bit. This tag is fully compliant with VDA (German Association of the Automotive Industry) recommendations for RFID implementations used in the tracking of parts and components in the automotive industry. With its unique antenna design, RAIN RFID Overmolded Square Metal Tag is built to work on metal. Meanwhile, it operates on a global band to provide end-to-end inventory and item tracking solutions for increased accuracy, visibility, and efficiency during the entire process.
The implementation of RFID is sometimes complicated when there are so many requirements to meet and some challenges just stand in the way. We are capable of taking out the hiccups people face when they plan to implement RFID but the environmental challenges just don’t agree. We show our expertise for customization and we do mass production to prove our work. We are eager to bring our professionalism to every project and customized products to any creative idea.
We are eager to show you how we deliver the RFID Transponders in highest quality
